Compleet anesthesiesysteem met ingebouwde verdamper met flowmeter.

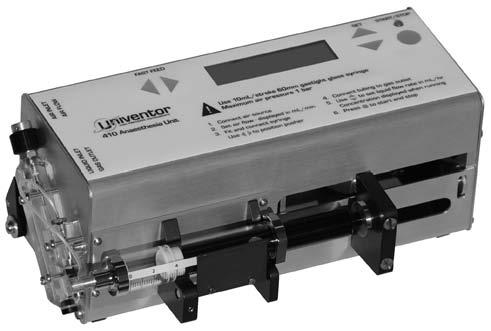

The Univentor 410 Anaesthesia Unit is designed to control the mixture of liquid anaesthetic and air with the precision required to successfully operate on animals weight from 20-500 grams.
The Univentor 410 is designed to oprate with compressed air reduced to not more than 1 bar whereas the Univentor 410-Q has been adapted to work with a pulse-free airpump. Air and anaesthetic is mixed in the vaporizer according the setting and may be delivered into an anaesthetised box, through a mask or to a ventilator.
Even though pre-calibrated for Isoflurane, other anaesthetics may be used taking the various properties into consideration that the unit is calibrated for Isoflurane.
Afmetingen | 120 (B) x 285 (L) x 95 (H) mm | |
Gewicht | 1,8 kg | |
Power supply | 110-240V, AC 50-60Hz, Batterij 12V, 400mA | |
Aandrijfmotor | Pulsatievrije gelijkstroommotor met variabele snelheid | |
Snelle voeding | Snelheid plunjer: 45 mm/min | |
Tolerantie plunjerverplaatsing | +/- 0,1 mm of +/- 1% van totale afstand | |
Max. plunjerkracht | 100 N | |
Tolerantie concentratie | +/- 0,15% van weergegeven waarde | |
Spuiten | 1 glazen, gasdichte 10 ml-spuit, verplaatsing plunjer: 60 mm | |
Display | 2 x 16 karkaters | |
Veiligheidsvoorzieningen | Geluidsalarm en rode led | |
Min. stroomsnelheid vloeistof | 0,4 ml/u | |
Max. stroomsnelheid vloeistof | 10 ml/u | |
Min. stroomsnelheid lucht | 50 ml/min | |
Max. stroomsnelheid lucht | 999 ml/min | |
Univentor 410 - Q | Univentor 410 | |
Min. luchtdruk | 0,3 bar | 0,5 bar |
Max. luchtdruk | 0,5 bar | 1,0 bar |
Bestelnummer | Product |
180000211 Q | Univentor 410-Q |
180000211 | Univentor 410 |
180000011-S | Vervangglas voor spuiten |
180000082 | Pulsvrije luchtpomp |
180000080 | Hydrofobic filter |
