High-performance and versatile anaesthetic agent monitoring.
The CapnoTrue MG Monitor can be used in combination with the uno MiCroVenTiLaTor - uMV-03.
The CapnoTrue MG monitors including the IRMA™ CO2 analyzer, ISA™CO2 analyzer and SoftCap Sensors are classified and certified as class IIb products.
Display | ||
Numerical | End-tital (et) CO²,-,N²O-and agent concentrations, inspired (Fi) CO², N²O and agent concentrations (SpO²), Respiration Rate (RR), Pulse Rate (PR) | |
Parameters displayed | Graphical | Capnogram and trends of numerical data (15 min/l h./6 h.) |
Indicators | Signal Strength and signal quality, pulse amplitude, battery status, alarm mute, pulse tone mute, storage status, real-time mode, neonatal mode, time. | |
Characteristics | Active OLED colour graphic display, 262.000 colours, 240 x 320 pixel (42 mm x 56 mm) | |
Capnography and anaesthetic agent measurement specifications | ||
Measurement range | etCO² and FICO² | 0-15% |
FIN²O | 0-100% | |
Hal, Iso, Enf | 0-8% | |
Sev | 0-10% | |
Des | 0-22% | |
Respiration rate | 0-150 l/min | |
Accuracy | EtCO² en FICO² | +/- (0,2 vol % + 2% of reading) +/- (0,3 vol % + 4% of reading) incl. interfering gasses |
N²O | +/- (2 vol % + 2% of reading) +/- (3 vol % + 5% of reading) incl. interfering gasses |
|
Hal/Iso/Enf/Sev/Des | +/- (0,15 vol % + 5% of reading) +/- (0,2 vol % + 10% of reading) incl. interfering gasses |
|
Ademhalingsvolume | +/- 1 | |
Warm-up time | <20 seconds full specification | |
Pulse Oximetry Specifications | ||
Measurement Range | SpO² Pulse Rate |
1 -100% 20-300 l/min |
Accuracy | SpO² Pulse Rate |
+/- 2% (70 bis 100%) +/- 1 digit (up to 100 l/min) or +/- 1% (> 100 l/min) |
Trend Information | ||
Long term trend | up to 150 hours | |
Short term trend | 15 min/l u./6h | |
Alarms | ||
Limits | Adjustable limits for all numerical parameters except for MaC | |
Alerts | Audible and visual alarms (comlies with EN60601-1-8) | |
Storing Data | ||
Communication interface | USB 2.0 | |
Data memory capacity | up to 150 hours | |
Real-time-mode | Visualisation and storage of numerical parameters on a computer every 4 seconds | |
Computer Software | CapnoTrue® MG PC Software for data download and real-time mode | |
Power supply | ||
Battery | Working time with full functionalilty approx. 4,5 hours, 4 alkalline batteries (AA/LR6/AM3/MN1500/Mignon), 1,5V | |
Li-Poly battery | Working time with full funtionalilty approx. 7 hours, Li-Poly battery, Model No CT-2500, 3,7V, 2500 mAh, charging time approx 5 hours | |
AC power supply | Model No. FW 7660M/06, medical power supply with option for country-specific input plug, input: 100-240V AC/50-60Hz / 250 mA, output: 6 VDC/1,4A | |
Specifications Environmental conditions | ||
Operation | 10 - 40°C, 15 -95% r.H. (non-condensing), 60 - 120 kPa (excl. Li-poly battery) | |
Storage | -20 -70°C, 10 - 95% r.H. (non-condensing), 60 - 120 kPa (excl. Li-poly battery) | |
Classification | ||
Product class | IIb (in accordance with MDD 93 / 42 /EEC) | |
Safety | Class of protection II / type BF - Type and degree of protection against shock | |
Construction | IPX1 (with silicone protective cover) | |
Normen | EN 60601-1:2006, IEC 60601-1-1:2001, IEC 60601-1-4-2000; IEC 60601-1-8:2006: ISO 21647:2004:ISO 9919:2005; ISO 5356-1:2004; DIN EN 1789:2007, EN846:1996 | |
Miscellaneous | ||
Dimensions | 150 mm x 75 mm x 35 mm | |
Weight | < 400 g (complete device with batteries) |
With its ultra-compct, light and easy to handle design, the Capnotrue®MG is the perfect felxible and mobile monitor for identifying and quantifying the five most important anaesthetic agents as well as other gases and parameters:
By direct measurement in the mainstream, there is no time delay in the measuring data.
Reliable automatic agent identification and quantification

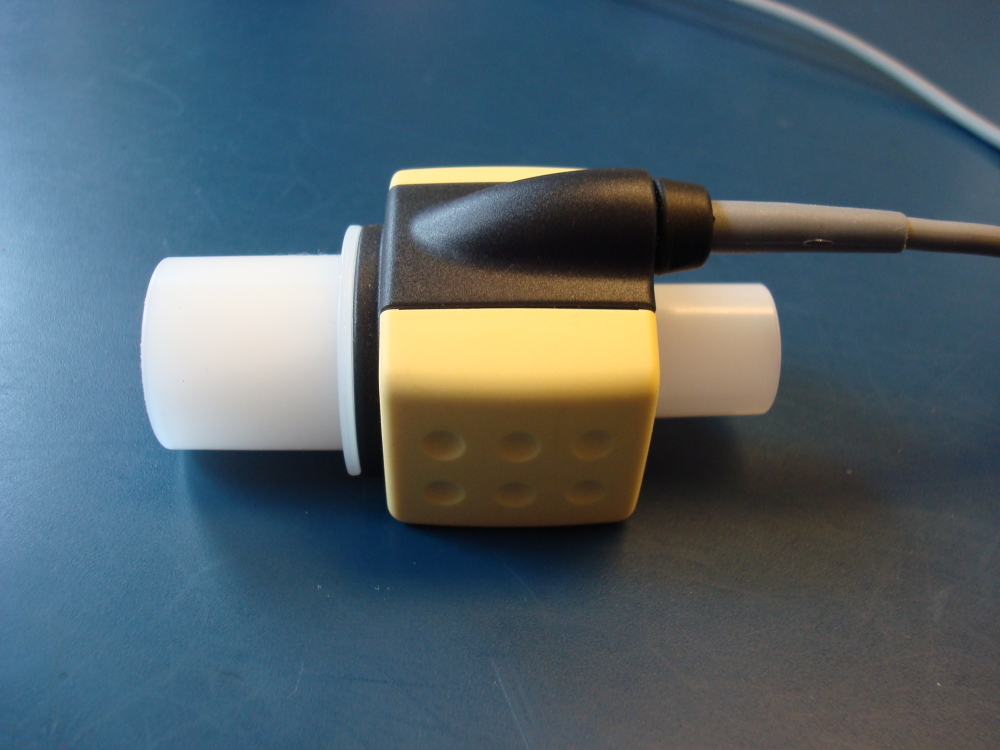

The IRMA AX+ Analyzer is equipped with state-of-the-art NDIR technology with up to 9-channel gas type analysis in the 4-10µm range and offers reliable agent identification and quantification even in gas mixtures. It weighs less than 25 g.
180000171 | Capnotrue MG (Multigas) |

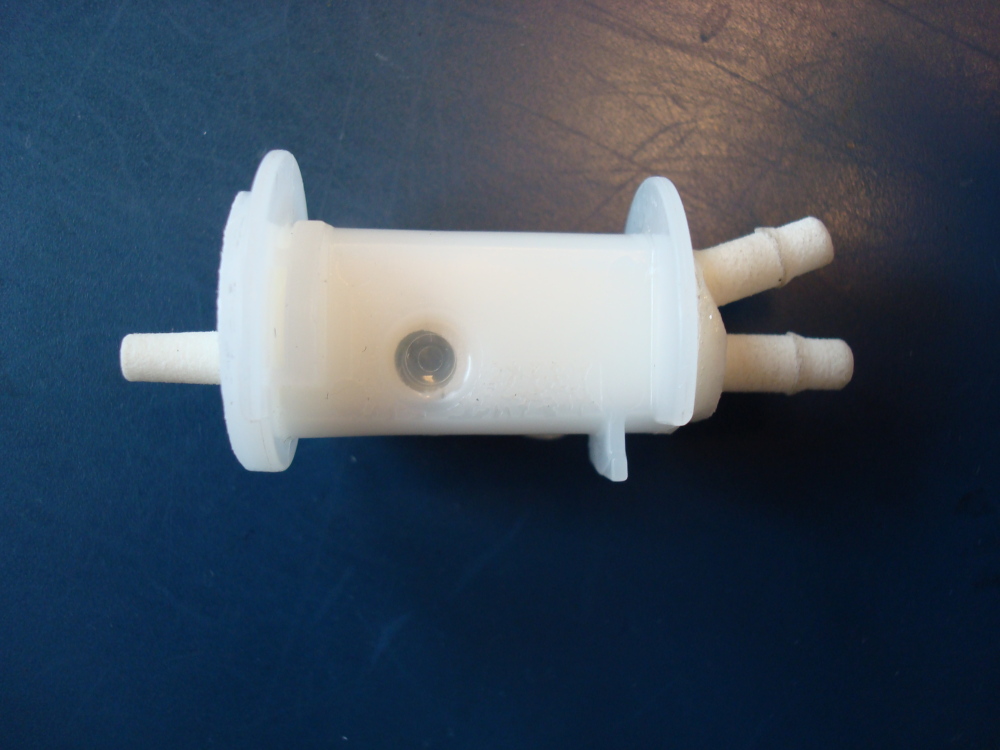

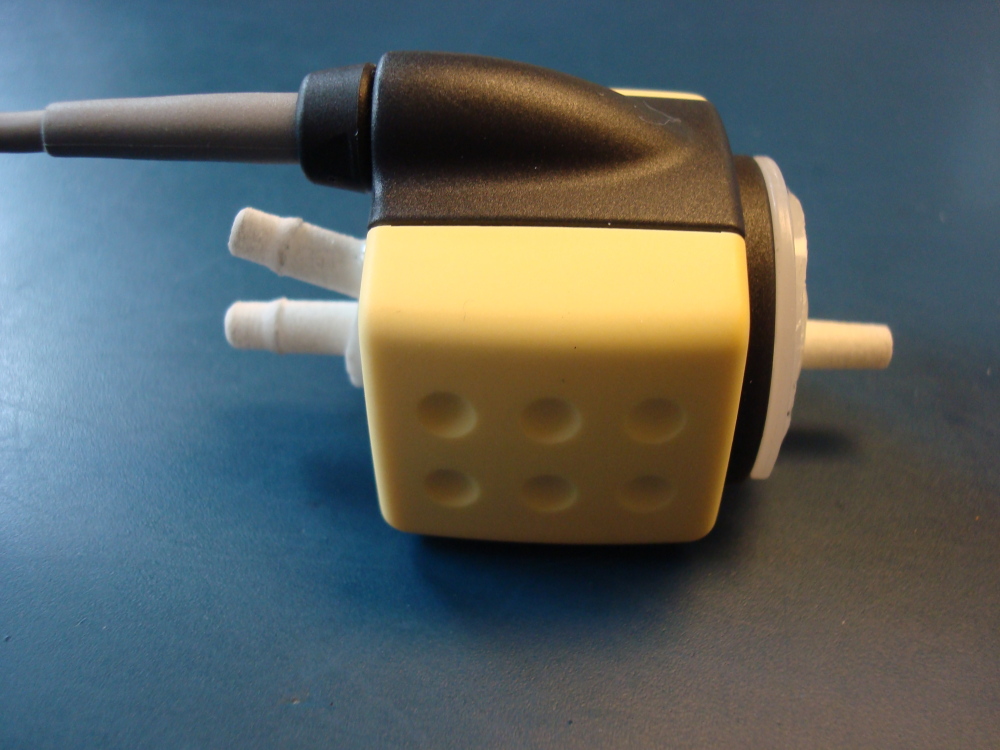

180000172 | Adjusted Probe to be used with Rats |
180000173 | Probe to be used with larger Animals |
