Pulse Oximeter VET Handheld Pulse Oximeter (sensors)
Only available in Belgium
Sesors
Purelight Vet sensors produce the pure light spectrum which eliminates variations in readings from animal-to-animal and sensor-to-sensor.
2000SL -Clip-on sensor for tongue applications, paw pads, and well-vascularized areas.
2000T -For placement on the underside base of the tail or other well-vascularized surfaces.
2000SA -Wrap sensor for placement on the toe (large animal) or base of the tail or foot (small anima).
Sensor Placement
2000SL Lingual Clip Sensor
Is convenient for spotchecks and form monitoring during recovery while the animal is immobile. However the sensor is held in place bij light spring pressure that could allow it to become dislodged wiht movement. Further, over time even light spring compressin may interfere with blood flow resulting in signal loss and need to reposition the sensor. The 2000SL is most easily applied tot the rear foot, but the front foot and tail can also be used. For mice, the sensor can be best placed high into the groin.
2000T Transflectance Sensor
Is also suitable for continous monitoring, the 2000T transflectance sensor is the smallest probe and can be applied tot the rear of front feet, or to the ventral surface of the tail of the rat. Secured with adhesive tape.
Alternatively the sensor can be attached to the surface of an operating or imaging table and the foot simply taped into position over it.

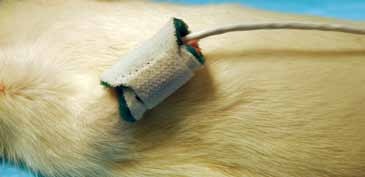

2000SA Small Animal Wrap Sensor
Can be easily secured and less prone to accidental displacement, making it an ideal option for continuous monitoring during long surgical or other procedures. Adhesive tape, cohesive bandage or a Posey Wrap can be used to assure that the sensor diodes are aligned directly opposite each other and that excessive pressure is avoided. The 2000SA schould not be applied to hair-covered or highly pigmented areas.
Ordering number
Swipe left and right to see the entire table.
| 2000SL | Sensor Lingual clip Sensor |
| 2000T | Transflectance sensor |
| 2000SA | Small Animal Wrap |
